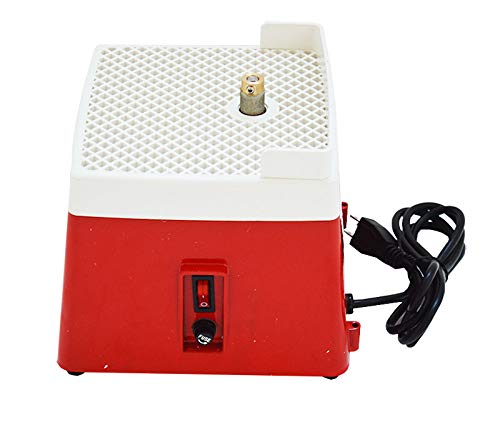

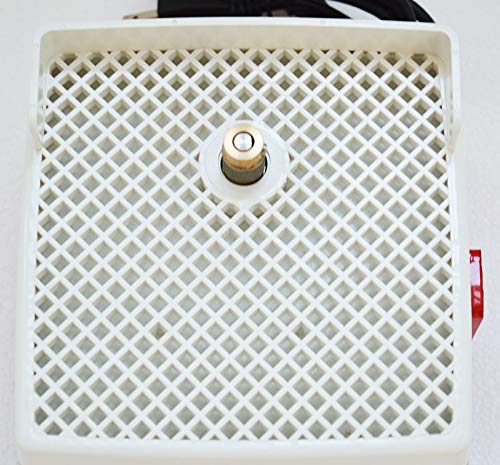

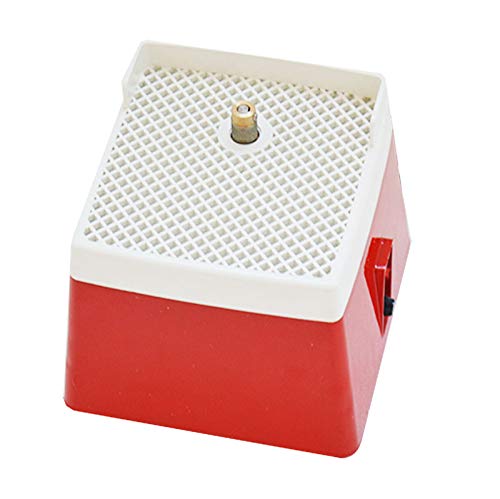

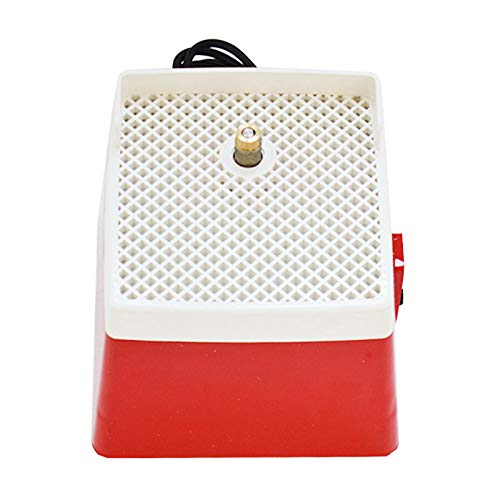

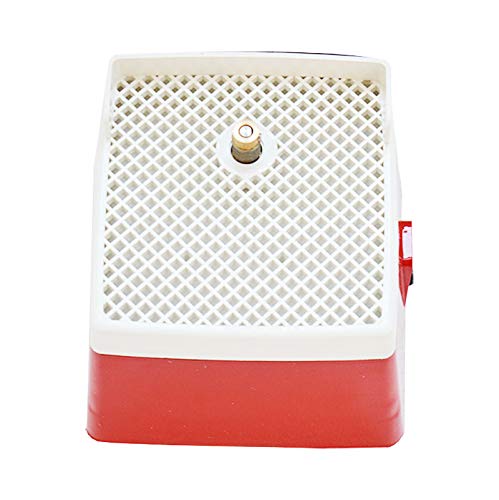

Portable Stained Glass Grinder Mini glass grinder is a small size of multi-function grinding machine. Applies to glass, marble, ceramic and other hardness materials for grinding of various kinds of forms: plane, curve, fillet, bevel etc,. Diamond grinder is a new design machine and widely used for glass processing, arts and decoration. Product Parameters: Color: RedSpeed: 4200r/minVoltage: AC 110V, 0.1AWorking table size: 16.5x16.5 cm/6.5" x 6.5"Machine size: 19.5x19.5x16 cm/7.7" x 7.7" x 6.3"Fit for: MCBL1(1"),MCBL58(5/8") Product Features: Easy to operate.Stable performance.Automatic water.Concave switch design to avoid electricity leakage.Grinding of brittle and hard materials such as glass and ceramics.Grind a variety of geometric shapes: planes, curves, rounded corners, bevels, etc. BEFORE YOU BEGIN BIT INSTALLATION 1. Installing the work surface, work surface adaptors & grinder bit. 2. Slide the bit onto the motor shaft, positioning the set screw over the flat side of the motor shaft. Position the bit on the shaft so at least 1/8" of the diamond surface is exposed above the work surface. 3. Secure the bit to the shaft by turning the set screw clockwise with the hex wrench. IMPORTANT information: Always secure the bit to the flat side of the motor shaft. Tightening the bit to the rounded side can scar the shaft and prevent bit removal! USING Install the grinder according to the assembly instructions. Install the diamond grinder bit on the grinding machine. And secure the bit to the shaft by turning the set screw clockwise with the hex wrench. Fill the water reservoir ≤200ml Open the switch and start grinding working.
